HTM71 Modular Storage Solutions

Modular Storage Solutions Designed around the HTM71 System.

Within Health Building Note 14-02 – Medicines storage in clinical areas – it is recommended that the construction of medicines cupboards should be made of metal in order to be able to comply with BS 2881.

What is HTM71?

HTM 71 is a ‘Health Technical Memorandum’ which was first published by the NHS in 1998. It is one of a series of documents that aims to standardise building components in healthcare buildings, making them as efficient as possible.

HTM71 sets out guidance for design teams and specifiers on the use of modular storage systems in health buildings. It addresses the need for more efficient and cost-effective management of healthcare furniture in NHS facilities and focuses on materials management modular storage and sets out the principles and design of the system itself.

Our HTM71 units:

Manufactured in house at Pharmacy Medical, these storage units are designed to offer HTM71 compatible storage and dispensing solutions. Manufactured from either powder coated mild steel or medical grade mild steel, all our trolleys are fitted with 100mm braked castors for easy manoeuvrability, or feet on the storage units. All our ward trolleys are also fitted with a removable stainless steel top and protective bumpers at all four corners.

Advantages of HTM71 Systems

An NHS study* found that using a HTM71 system over alternative systems could provide a 23% reduction in floor space for a like-for-like (HTM63) system and a 12% reduction in cost for a like-for-like (HTM63) system.

Modular storage systems can provide functions that can be tailored to particular requirements more precisely than traditional storage methods such as filled cupboards. This in turn allows easy visual location, more efficient stock rotation, reduced space requirements and greater flexibility.

Additional benefits include generally more efficient and cost effective use of built volume.

* NHS Estates, Department of health,  1998, Health Technical Memorandum 71 – Building components – Materials Management Modular Storage (Page 4-5, Section 3.2)

HTM71 Design

Our latest offering of HTM71 cabinets from Pharmacy Medical feature their latest deign of cabinet and trolley based on customer feedback and latest NHS guidance.

The new design of cabinets is based on the publication of HBN14-02 – Health Building Note 14-02 – Medicines storage in clinical areas.

This HBN covers the storage requirements for the following specific categories of medicines:

  • controlled drugs;
  • epidural infusions and other high-risk medicines (wards only);
  • intrathecal chemotherapy;
  • oral solid medicines;
  • injectable medicines;
  • injectable anti-cancer medicines;
  • oral liquid medicines;
  • medicines to take home;
  • flammable medicines;
  • medicines requiring refrigerated/ freezer storage;
  • medicines administered rectally and external medicines and dressings;
  • IV fluids;
  • patients’ own medicines.

Within this HBN, it is recommended that the construction of medicines cupboards should be made of metal in order to be able to comply with BS 2881.

Cabinet and Trolley Options

As standard, all our cabinets and trolleys feature the following:

  • Mild steel powder-coated construction.
  • Supplied fully assembled (just position your optional trays).
  • Locking castors fitted to all four corners (trolleys only).
  • Protective bumpers fitted to all four corners (trolleys only).
  • Removable stainless steel top (trolleys only).

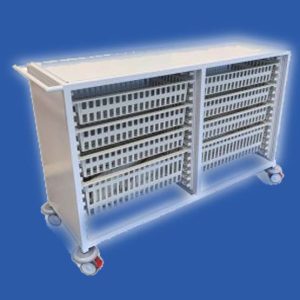

HTM71 Trolleys

Our HTM71 style trolleys can be optioned with:

  • Medical grade stainless steel construction.
  • Internal HTM71 plastic trays.
  • Locking doors.
  • Landscape or portrait construction.
  • Push handles fitted to one end.

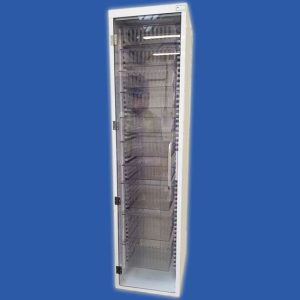

Our HTM71 style cabinets can be optioned with:

  • Medical grade stainless steel construction.
  • Internal HTM71 plastic trays.
  • Locking doors.
  • Landscape or portrait construction.

All of these trolleys are manufactured in the UK by Pharmacy Medical. Although we offer a wide range of sizes and configurations, we can offer a bespoke manufacturing service on these items for bulk orders. Please get in touch to discuss your specific requirements.

Please note: these trolleys are made to order and will be on approximately a 2-3 working week lead time. Please get in touch for a more accurate current lead time.

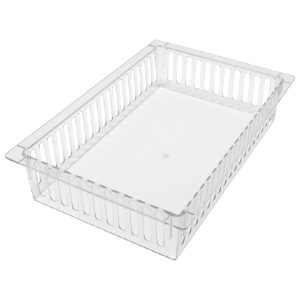

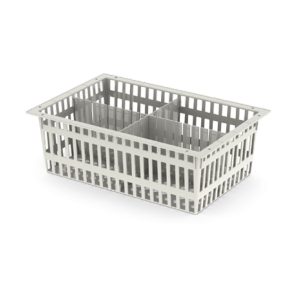

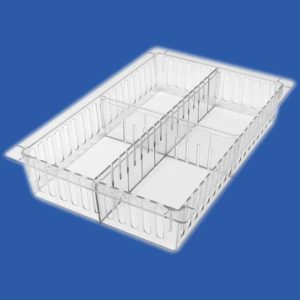

HTM71 Storage Tray
